Multiple Choice
Identify the
letter of the choice that best completes the statement or answers the question.
|
|
|
1.
|
Which
of the following standards uses a single ring and token passing access method?
a. | 802.3 | c. | FDDI | b. | 802.5 | d. | 802.11b | | | | |
|
|
|
2.
|
Uses
CSMA/CA access method.
a. | 802.3 | c. | FDDI | b. | 802.5 | d. | 802.11b | | | | |
|
|
|
3.
|
802.3u specifies
a. | 100 Mbps | c. | 1000Gbps | b. | 1Gbps | d. | Fiber | | | | |
|
|
|
4.
|
You
need to connect two servers that are located 600 meters apart. You require a direct connection
without the use of signal regeneration. Which of the following Ethernet standards would you
employ?
a. | 10BaseT | c. | 10Base5 | b. | 100BaseT | d. | 100BaseFX | | | | |
|
|
|
5.
|
Joe

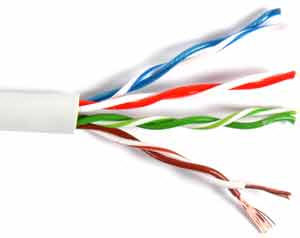

hands you a cable that looks like this:
What kind of
connector should you use to make the cable? a. | RJ11 | c. | BNC | b. | RJ45 | d. | IBM Data | | | | |
|
|
|
6.
|
What
is the maximum cable length specified in the IEEE 802.3 10Base2 standard?
a. | 185
meters | c. | 100
meters | b. | 500 meters | d. | 250 meters | | | | |
|
|
|
7.
|
You
have been asked to recommend a networking architecture that can support data transfers of up to 100
Mbps, using the existing Category 3 cable and the CSMA/CD access method. Which of the following best
suits your needs?
a. | 100BaseTX | c. | 100BaseT4 | b. | 100BaseFX | d. | 100BaseT | | | | |
|
|
|
8.
|
What
is the maximum transfer distance of 1000BaseT? a. | 100 meters | c. | 412 meters | b. | 1000
meters | d. | 550
meters | | | | |
|
|
|
9.
|
You
have been asked to install a client computer on an existing network. Upon inspection of the cable,
you identify that it is connected by using BNC connectors. Which of the following network standards
is in use? a. | 10BaseT | c. | 10Base2 | b. | 100BaseFX | d. | Gigabit Ethernet | | | | |
|
Completion
Complete each sentence or
statement.
|
|
|
10.
|
Which
of the following are associated with IEEE 802.3z? (Choose the three best
answers.)
a.
1000BaseLX
b.
1000BaseCX
c.
1000BaseBX
d.
1000BaseSX
To answer type
the letter corresponding to the answers in the box below, in order, no spaces, all small
letters.
Example: aft
|
|
|
11.
|
100BaseT is also known as _____ Ethernet
|
|
|
12.
|
1000BaseT is also known as _____ Ethernet
|
