Matching
|
|
|
Wireless Networking a. | Radio | e. | 802.11g | b. | Microwave | f. | Infrared | c. | Satellite | g. | WAP | d. | 802.11b | h. | WEP |
|
|
|
1.
|
Transmits at 11Mbps
|
|
|
2.
|
Travels at 100Ghz to 1Ghz through the air
|
|
|
3.
|
Uses either broadcast or point to point and runs at 10-16Mbps
|
|
|
4.
|
Requires line of site and licensing approval
|
|
|
5.
|
A protected access protocol for Wi-Fi
|
|
|
6.
|
Transmits at 54Mbps or 108Mbps
|
|
|
7.
|
Very expensive! Most companies lease space from other companies.
|
|
|
8.
|
A better Wi-Fi protocol that is supposed to be the equivalent of wired
|
|
|
What do each of the following lights on a NIC mean?
|
|
|
9.
|
NIC is functional
|
|
|
10.
|
If blinking the NIC is either sending or receiving data
|
|
|
11.
|
If blinking NIC is functional and transmitting frames
|
|
|
12.
|
If blinking, NIC is functional and receiving frames
|
|
|
Cloud Matching...match the term to the definition a. | Cloud Computing | e. | Back end | b. | Middleware | f. | Applications | c. | Front
end | g. | Google
Aps | d. | Browser | h. | Security |
|
|
|
13.
|
“software” that handles the interaction between the user and the
cloud.
|
|
|
14.
|
The most common front end software
|
|
|
15.
|
Software the user uses to access the cloud
|
|
|
16.
|
Includes remote servers, remote aps, and other things accessed through the
cloud
|
|
|
17.
|
Having users access these through the cloud allows the company to pay a
subscription rather than have individual licenses.
|
|
|
18.
|
Having data, programs, and other things hosted off site and accessible through
the Internet.
|
|
|
19.
|
An example of cloud solution for programs.
|
|
|
20.
|
Probably the biggest concern a company must deal with when choosing whether are
not to use the cloud to store data.
|
|
|
a. | TPM | d. | BIOS user password | b. | Chassis Intrusion Detection | e. | DriveLock admin password | c. | BIOS Administrator
password |
|
|
|
21.
|
Tells you if the cover has been recovered
|
|
|
22.
|
If you lose this password, there is no way to boot the system
|
|
|
23.
|
Required to change the CMOS
|
|
|
24.
|
If you lose this password, there are two ways to reset the system to get
in
|
|
|
25.
|
Can be used to keep the system from booting if hardware has changed
|
|
|
26.
|
Can reset this warning in the BIOS
|
|
|
Match the service to the port it comes in on a. | FTP | g. | POP3 | b. | SSH | h. | HTTP
WITH SSL | c. | Telnet | i. | IMAP4 | d. | HTTP | j. | UDP | e. | SSL | k. | TCP | f. | SMTP |
|
|
|
27.
|
20 TCP
|
|
|
28.
|
80 TCP
|
|
|
29.
|
25 TCP
|
|
|
30.
|
443 TCP & UDP
|
|
|
31.
|
443 UDP AND TCP
|
|
|
32.
|
More secure, more headers, less data, slower, used most often
|
|
|
33.
|
143 TCP AND UDP
|
|
|
34.
|
23 TCP
|
|
|
35.
|
Faster, less secure, used for streaming audio/video, DoS, and some trojans.
More data in each packet.
|
|
|
36.
|
22 UDP & TCP
|
|
|
37.
|
21 TCP
|
|
|
38.
|
110 TCP
|
|
|
Match the parts of a network with their definitions.
a. | Protocol | e. | Server | b. | Transmission Media | f. | Clients | c. | Resources | g. | Network operating system | d. | Connectivity
devices |
|
|
|
39.
|
Software that allows a server to perform network operations.
|
|
|
40.
|
These can be files or directories or peripherals like printers, scanners, or
plotters
|
|
|
41.
|
A set of "rules" that allow communication to take place.
|
|
|
42.
|
Computers that access servers across a network and use resources.
|
|
|
43.
|
Can include NICs, cabling, wires, connectors, or wireless technology
|
|
|
44.
|
The computer(s) on a network that manage the network and resources.
|
|
|
45.
|
Hardware such as hubs, routers, brouters, or gateways that connect computers
together.
|
|
|
Match the level of the OSI model with the descriptions below. a. | Application | e. | Network | b. | Presentation | f. | Data Link | c. | Session | g. | Physical | d. | Transport | h. | More than one
level |
|
|
|
46.
|
Describes the physical cabling and NICs.
|
|
|
47.
|
Interfaces with programs on the computer.
|
|
|
48.
|
Repeater and hubs
|
|
|
49.
|
Does not add or strip a header
|
|
|
50.
|
Primary function is to disassemble frames into bits for transmissions
|
|
|
51.
|
Deals with addressing on the MAC sublayer (aka the physical device address, or
the address of the NIC)
|
|
|
52.
|
Ensures reliable delivery of messages through error control and end to end flow
control
|
|
|
53.
|
Bridge
|
|
|
54.
|
Delivers packets through circuit switching or packet switching,
|
|
|
55.
|
gateway
|
|
|
56.
|
Opens, maintains, and closes a communication session
|
|
|
57.
|
router, brouter
|
|
|
58.
|
Advertises available services on the networ
|
|
|

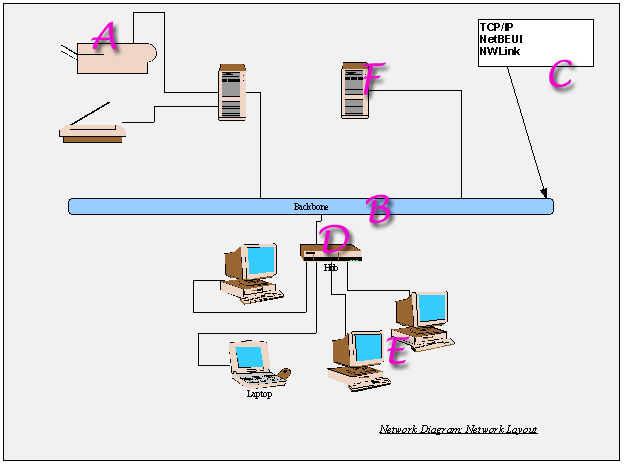

Parts of a Network
|
|
|
59.
|
Protocols
|
|
|
60.
|
Resource to share
|
|
|
61.
|
Transmission media
|
|
|
62.
|
Clients
|
|
|
63.
|
Networking hardware
|
|
|
64.
|
Server
|
|
|
Match the description to the 802 committee where you would go for
information. a. | Setting up a wireless network | h. | General networking
standards | b. | Creating new hardware for an ethernet network that uses the CSMA/CD access
method | i. | Looking for
information on an older token based LAN that doesn’t use a ring topology | c. | Developing new token
ring technologies | j. | Your
company wants to move the phone system from POTS to integrating it into the ethernet
network | d. | Learning about new network security options available | k. | Learning about broadband | e. | Reading up on the
purpose of the LLC layer | l. | Designing new hardware to work with the cable system | f. | Developing hardware
to take advantage of fiber optics | m. | Defines protocols for setting up a high speed demand priority LAN | g. | Protocols in use on
a MAN |
|
|
|
65.
|
802.1
|
|
|
66.
|
802.2
|
|
|
67.
|
802.3
|
|
|
68.
|
802.4
|
|
|
69.
|
802.5
|
|
|
70.
|
802.6
|
|
|
71.
|
802.7
|
|
|
72.
|
802.8
|
|
|
73.
|
802.9
|
|
|
74.
|
802.10
|
|
|
75.
|
802.11
|
|
|
76.
|
802.12
|
|
|
77.
|
802.14
|
|
|
Match the network to its standards
|
|
|
78.
|
Uses coaxial cabling
|
|
|
79.
|
CSMA/CD
|
|
|
80.
|
Requires termination at both ends
|
|
|
81.
|
Requires grounding
|
|
|
82.
|
Failure if there is a cable break
|
|
|
83.
|
Uses token passing access method
|
|
|
84.
|
Devices wired to a hub or switch in a physical ____
|
|
|
85.
|
Usually uses a physical star
|
|
|
86.
|
A logical bus usually uses a physical ____
|
|
|
87.
|
A logical ring usually uses a physical ____
|
|
|
88.
|
Can use IBM Data Connectors or RJ45
|
|
|
89.
|
Uses a special kind of hub called an MSAU
|
|
|
90.
|
Uses a beacon for autoreconfiguration of the network
|
