True/False
Indicate whether the
statement is true or false.
|
|
|
1.
|
The OS does not communicate directly with IDE drives.
|
|
|
2.
|
Two devices on the same SCSI bus can pass data back and forth without going
through the CPU.
|
|
|
3.
|
The system board BIOS takes precedence over the BIOS on the SCSI host adapter in
determining which disk will be the boot drive.
|
|
|
4.
|
The primary partition can have only a single logical drive, and is the only
partition on the hard drive that can boot the operating system.
|
|
|
5.
|
Beginning with IDE technology, the number of tracks per sector varied depending
on the location of the track.
|
|
|
6.
|
Windows NT and Windows 2000 bypass the system BIOS altogether and communicate
directly with the controller BIOS by using device drivers.
|
|
|
7.
|
On a computer that has only DOS installed on the hard drive, the root directory
will be indicated by A:>
|
|
|
8.
|
If you create files in a directory in DOS, you will be able to view those files
using the tree command.
|
Multiple Choice
Identify the
choice that best completes the statement or answers the question.
|
|
|
9.
|
Each side or surface of one hard drive platter is called a ____.
a. | spindle | b. | actuator | c. | head | d. | platter |
|
|
|
10.
|
____ speeds up the writing of data to the drive as the tracks becomes smaller
near the center of the platters.
a. | Platter aberration | b. | Reduced write current | c. | Actuator
deviation | d. | Write precompensation |
|
|
|
11.
|
In IDE and SCSI drives, a(n) ____ is mounted on a circuit board on the drive
housing and is an integral part of it.
a. | adapter | b. | ROM bios | c. | CMOS
chip | d. | controller |
|
|
|
12.
|
IDE drives use a ____-pin cable.
|
|
|
13.
|
In____, tracks near the center have the smallest number of sectors per track,
and the number of sectors increases as the tracks get larger.
a. | actuator drift | b. | reduce write current | c. | write
precompensation | d. | zone bit recording |
|
|
|

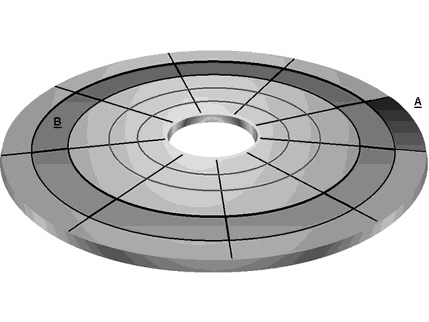

 Figure
6–4
|
|
|
14.
|
In Figure 6-4, Item A is next to a darker segment of the graphic, representing a
____.
a. | cylinder | b. | segment | c. | track | d. | sector |
|
|
|
15.
|
In Figure 6-4, Item B is next to a darker concentric circle, representing a
____.
a. | FAT | b. | segment | c. | track | d. | sector |
|
|
|
16.
|
With IDE drives, the OS executes the remainder of the format process. This is
known as a ____.
a. | low level format | b. | high-level format | c. | partition | d. | part |
|
|
|
17.
|
Depending on the type of SCSI being used, the SCSI bus can link up ____ or ____
devices.
a. | 4, 6 | b. | 5, 7 | c. | 7,
15 | d. | 9, 21 |
|
|
|
18.
|
SCSI devices interface with the ____ rather than the CPU.
a. | DMA | b. | host adapter | c. | IRQ
controller | d. | system clock |
|
|
|
19.
|
The ____ controls the transfer of data over the SCSI bus.
a. | host adapter | b. | controller | c. | SBAC | d. | bus |
|
|
|
20.
|
A SCSI requires termination to reduce 'noise' or interference.
Termination should occur ____.
a. | at the host adapter end of the bus | b. | at the last device on the
bus | c. | at the host adapter and device 0 | d. | at both ends of the
bus |
|
|
|
21.
|
Narrow SCSI uses a ____-pin cable and Wide SCSI uses a ____-pin cable.
a. | 34, 40 | b. | 50, 68 | c. | 30,
72 | d. | 69, 94 |
|
|
|
22.
|
What step in the process of preparing a disk for use lays out the tracks and
sectors on the drive?
a. | low level format | b. | configure jumpers | c. | partition | d. | high level
format |
|
|
|
23.
|
At the very beginning of the drive (head 0, track 0, sector 1) is stored the
____, which contains information about the logical partitions on the drive.
a. | FAT | b. | MBR | c. | partition
table | d. | root directory |
|
|
|
24.
|
The partition table is exactly ____ bytes long.
|
|
|
25.
|
Another name for the partition table program is ____.
a. | root directory | b. | FAT | c. | MBR | d. | OS boot record |
|
|
|
26.
|
When the drive is partitioned, ____ assigns a drive letter to each logical
drive.
a. | FORMAT | b. | SYS | c. | MEM | d. | FDISK |
|
|
|
27.
|
A ____ is used during the boot process to inform the OS how a logical drive is
organized.
a. | root directory | b. | FAT | c. | MBR | d. | boot record |
|
|
|
28.
|
For DOS, each entry in a FAT for most hard drives is 16 bits, called
____.
a. | FAT12 | b. | FAT32 | c. | FAT16 | d. | FAT64 |
|
|
|
29.
|
FAT 32 root directory entries are ____-bits long, and each entry is called
block.
|
|
|
30.
|
FAT32 uses ____K clusters for hard drives from 8G to 16G in size.
|
|
|
31.
|
To display or change file attributes use the ____ command.
a. | SET | b. | DIR /AT | c. | ATTRIB | d. | DISP |
|
|
|
32.
|
A ____ file contains a list of DOS commands in a text file.
a. | command | b. | executable | c. | batch | d. | list |
|
|
|
33.
|
When the clusters making up a file are not contiguous, or next to each other,
the file is said to be ____.
a. | scattered | b. | distributed | c. | fragmented | d. | disbursed |
|
|
|
34.
|
The clusters that make up a file are referred to as a ____.
a. | chain | b. | group | c. | segment | d. | series |
|
|
|
|
|
|
35.
|

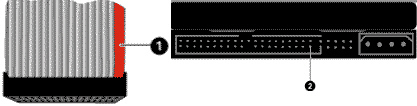

In Img2 the number 1 refers to:
a. | Pin one on the hard drive | c. | Pin one on the IDE
cable | b. | Pin one on the SATA cable | d. | The key for coordinating how the cable plugs in |
|
|
|
36.
|
In Img2 the number 2 refers to:
a. | Pin one on the hard drive | c. | Pin one on the IDE
cable | b. | Pin one on the SATA cable | d. | The key for coordinating how the cable plugs in |
|
|
|
|
|
|
37.
|

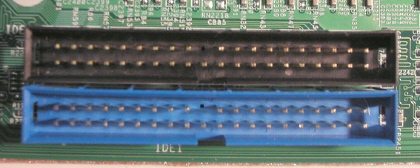

Img3 Refers to a/an:
a. | Serial connector | c. | IDE connector | b. | SATA connector | d. | EIDE connector |
|
|
|
38.
|
This hard drive technology is brand new and mainly being used in businesses that
have high storage needs.
|
|
|

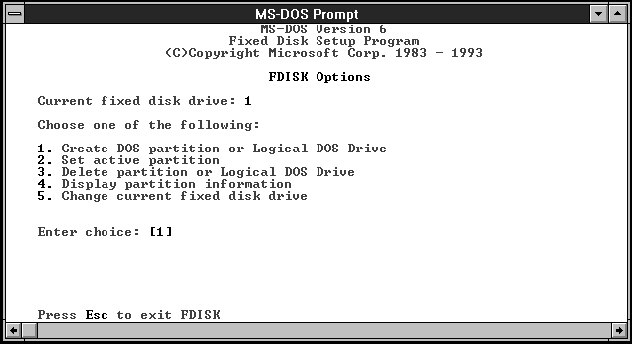

 Image 7
|
|
|
39.
|
In Image 7 you can use this DOS based program to do what?
a. | Format a hard drive | c. | Create and delete partitions | b. | Delete a hard
drive | d. | Gather information
about tracks and sectors |
|
|
|
 Image 8
|
|
|
40.
|
To show the information shown in image 8, what command would you
type?
a. | DIR | c. | TREE /W | b. | TREE | d. | DIR /W |
|
|
|
41.
|
In image 8, how would you move from egg to chicken if you were currently in
c:\egg> ?
a. | mkdir /egg | c. | cd.. | b. | cd egg | d. | mkdir.. |
|
|
|
42.
|
To rename a file from lion to bear, what command would you type? (Assume lion is
in your root drive c:\)
a. | ren c:\lion bear | c. | move c:\lion bear | b. | ren c:\bear lion | d. | move c:\bear
lion |
|
|
|
43.
|
In Zone Bit Recording:
a. | The number of tracks and sectors is the same, regardless of the drive
geometry | c. | The size of the tracks is the same throughout the drive platter | b. | The size of tracks
and sectors is different throughout the drive platter | d. | The number of tracks and sectors is differen,
based on the drive geometry |
|
|
|
44.
|
Data on a drive is written:
a. | From the inside out | c. | From the top to bottom | b. | From the outside
in | d. | From the bottom to
top |
|
|
|
45.
|
This speeds up the writing of the tracks that are closer to the center of the
drive:
a. | compensation | c. | zone bit recording | b. | encapsulization | d. | precompensation |
|
|
|
46.
|
This formatting lays down the track and sector markings on the drive. It is done
at the factory.
a. | OS | c. | High level | b. | Low level | d. | Boot sector |
|
|
|
47.
|
This formatting lays down the boot sector, FAT, and root directory.
a. | DOS | c. | High level | b. | Low level | d. | Boot sector |
|
Multiple Response
Identify one
or more choices that best complete the statement or answer the question.
|
|
|
 Img 4
|
|
|
48.
|
In Img 4 the connections shown is/are: (choose all that apply)
|
|
|

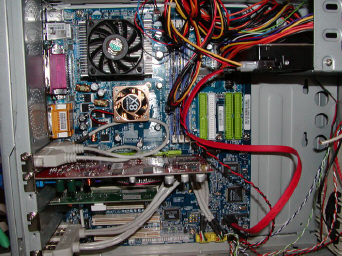

 Image 6
|
|
|
49.
|
In Image 6 the type of hard drive used provides for:
|
|
|
50.
|
Why learn DOS?
|
Completion
Complete each
statement.
|
|
|
51.
|
The ____________________ command displays the directory structure of a hard
drive or disk.
|
|
|
52.
|
SCSI is like a small ____________________ inside a computer.
|
|
|
53.
|
Probably the most popular driver for SCSI devices is
____________________.
|
|
|
54.
|
Windows 9x ____________________ are equivalent to DOS subdirectories.
|
|
|
 Image 5
|
|
|
55.
|
In Image 5 the power connector on the right is a __________ connector (use the
acronym).
|
|
|
56.
|
In Image 5 the power connector on the left is a __________ connector (use the
term).
|
|
|
Image 6
|
|
|
57.
|
In Image 6 the type of hard drive used in this system would be:
|
Numeric Response
|
|
|
58.
|
In SAS you can have up to ____ devices chained together!
|
Matching
|
|
|
|
|
|
59.
|
Secondary IDE Cable
|
|
|
60.
|
Primary IDE Cable
|
|
|
61.
|
Secondary IDE Channel
|
|
|
62.
|
Hard Drive
|
|
|
63.
|
CD ROM
|
|
|
64.
|
Primary IDE Channel
|
|
|
Match the DOS commands to their uses
a. | Displays the contents of a
directory | f. | Moves up through a directory tree one directory | b. | Displays a directory
and its subdirectories | g. | Moves you from the current subdirectory to the root directory | c. | Creates a new
directory | h. | Renames a
folder | d. | Creates a new file | i. | Creates a bootable disk | e. | Changes the directory to a
subdirectory | j. | Renames a
file |
|
|
|
65.
|
mkdir
|
|
|
66.
|
cd
|
|
|
67.
|
dir
|
|
|
68.
|
cd..
|
|
|
69.
|
edit new
|
|
|
70.
|
tree
|
|
|
71.
|
move
|
|
|
72.
|
\
|
|
|
73.
|
ren
|
|
|
74.
|
sys
|
