Lab 2-10 Using Batch Files



Suppose you have a list of OS commands that you want to execute several times. You can create them to run certain programs, map hard drives on a network, install printers automagically…and do all sorts of evil stuff. We, however, will not do evil stuff in here…will we Cody?



Batch files are simply text files created in notepad or even in the edit program in DOS. The only difference is, when you save them you save them with a .bat extension. If you then double click the file, it will run your commands.



Do this in Windows 98.



Let’s practice:



Creating a BATCH File

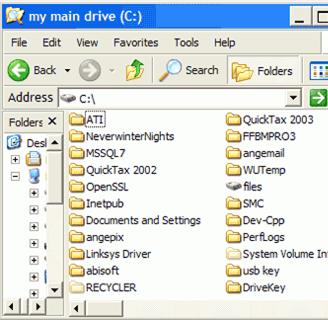

First open an explorer window to your c: drive, using Windows Explorer or 'my computer.' Arrange the window so you can see both your desktop and your c: drive contents.

Open the notepad application by going to 'start\all programs\accessories\notepad' or 'start\run' and type 'notepad'.

In the blank notepad window, type:

md c:\testsource
md c:\testbackup

Now go to 'file' and 'save as'.
(in case you did not read our guide to the command prompt, the 'md' command instructs the system to create a directory using a name and location following the command.)

Save your first batch file on the desktop as 'myfirstbatch.bat'.



Close notepad and you'll see that 'myfirstbatch.bat' has appeared on the desktop. Double click the file to run it. Check your c: window. The 'testsource' and 'testbackup' directories have appeared. Your first simple batch file is a success! Delete the 'myfirstbatch.bat' file from your desktop. Beautiful!

Creating your second batch file

Now to create a batch file to backup these files into your c:\testbackup directory automatically. Open up notepad and type the following:

@echo off
xcopy c:\testsource c:\testbackup /m /e /y

The '@echo off' line tells the computer not to display anything onscreen when it runs this batch file.

The second line uses the xcopy command to copy all contents of the c:\testsource' directory to c:\testbackup the first time the batch file is run. The second time and all remaining times, it will only copy new files and files which have changed since it was last run. It will not copy unchanged files which it previously copied, even if you delete the copies it made from the c:\testbackup' directory.

Now save your batch file as 'testbackup.bat' on your desktop and double click it to run the script.

Check the contents of your c:\testbackup directory. It should now have copies of the two files you created in c:\testsource. Good stuff. Now open 'testdoc1' in your c:\testsource directory and add some text then save it.

Run your testbackup.bat batch file again, and go to the 'testdoc1' file in the c:\testbackup folder. It should have been updated with the changes you made in the other folder.

You've now created a useful backup utility with a simple two-line batch file that just takes a double click to run. Starting to see the potential usefulness of knowing your batch files yet?

Third trial batch file: getting fancy

Now that we've seen some of the extra commands that can be used in batch files, let's play with one of the most powerful of them, the FOR command. In this case, we're going to alter our simple backup batch file and make it a bit more sophisticated. It's going to differentiate between two different types of files (text/Word documents and pictures) and back each file type up to a different directory. To set up for this we need to create two more directories in c:\. Call them

C:\Text
C:\Pics

Delete the existing text and .bmp files in your c:\testsource directory and create a couple of new versions of each.

Now open notepad and enter the following:

@echo off
cd c:\testsource
for %%f in (*.doc *.txt) do xcopy c:\testsource\"%%f" c:\text /m /y
for %%f in (*.jpg *.bmp *.gif) do xcopy c:\testsource\"%%f" c:\pics /m /y

Now this is a bit more complicated than the files we did before, so let's take a close look at what this batch file is going to do.

cd c:\testsource

Tells the computer that the directory we are going to be working in is c:\testsource

for %%F in (*.doc *.txt) do xcopy c:\testsource\"%%F" c:\text /m /y

This line tells the computer that FOR any file with the .doc or .txt file extension (meaning any standard Word doc or text file), DO an xcopy command to copy that file to the c:\text directory using the same options we used in the last batch file. The confusing looking '%%F' character represents the variable that the FOR command uses to carry out this operation. For example, if your first text file in the c:\testsource directory is 'texttest1.txt', the batch file would look at it, see that it had a .txt extension and assign it as the value of '%%F'. The second part of the command

do xcopy c:\testsource\"%%F" c:\text /m /y

takes whatever %%F is (in this case your 'texttest1.txt' file) and copies it to the c:\text directory. The quotation marks around %%F are to allow the command to deal with file names containing spaces. The command then loops until it has looked at every file in the current directory before moving on to the next part of the batch file.

for %%F in (*.jpg *.bmp *.gif) do xcopy c:\testsource\"%%F" c:\pics /m /y

The only thing that is different here is that we are looking for graphics file extensions instead and copying them to the 'c:\pics' directory.

Save your third batch file on the desktop as 'trickybackup.bat' and try it out. You'll see that your newest creation neatly differentiates between text documents and pictures and splits them up accordingly.

Questions:



  1. What is a batch file?





  1. What program should you use to create a batch file?





  1. What is the three letter extension for batch files?





  1. What does @echo off mean?





  1. What are some other uses you can think of for batch files?









  1. Now does it make sense to learn some DOS? Even if you never use the DOS OS, you can use the commands in batch files to do things.
